How to replace Sprinter door and dash speakers

The stock speakers in a Sprinter are cheap and nasty. They sound just about OK with the engine off, but they can’t compete with road noise and have no dynamic range. Here’s how to take them out and replace them.

This job doesn’t ask much of you mechanically, other than the ability to lever panels off and strip and crimp connectors on to cables. The end result is much better sound. We’re really happy with how our speaker upgrade turned out.

Tools you’ll need

Trim removal tools
Trim removal tools

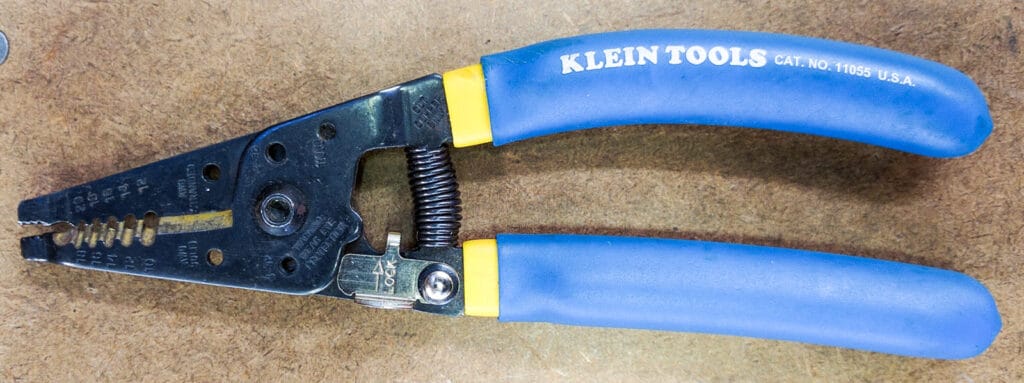

Wire stripper
Wire stripper

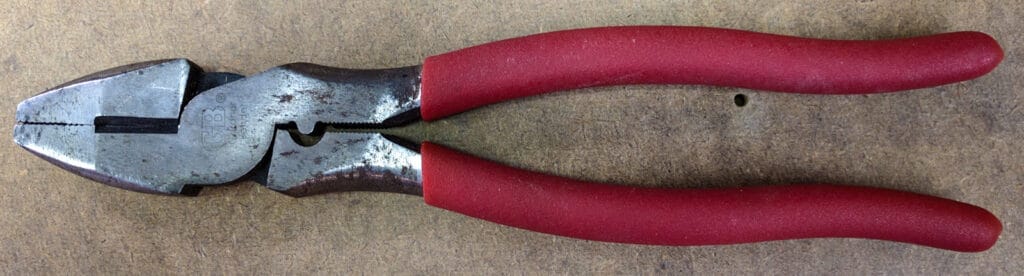

Linesman's pliers with crimper
Linesman’s pliers with crimper
  • Fish tape or piece of copper wire to pull cables through door to dash.

Supplies you’ll need

  • Replacement speakers. 1″ tweeters should be a direct replacement for the factory tweeters. We used Hertz Audio DSK 165.3 6-1/2″ 2-way Dieci Series speakers. The tweeters clipped in to the stock location perfectly when we added their little trim rings.
  • Speaker adapter rings. These allow you to use larger speakers in the small speaker hole without major modifications. They are made by Hein, one of the Sprinter Forum contributors. He sells them on eBay. He makes different sized rings for different models of speakers. The Hertz speakers we used fit in the 5.75″ adapter rings.

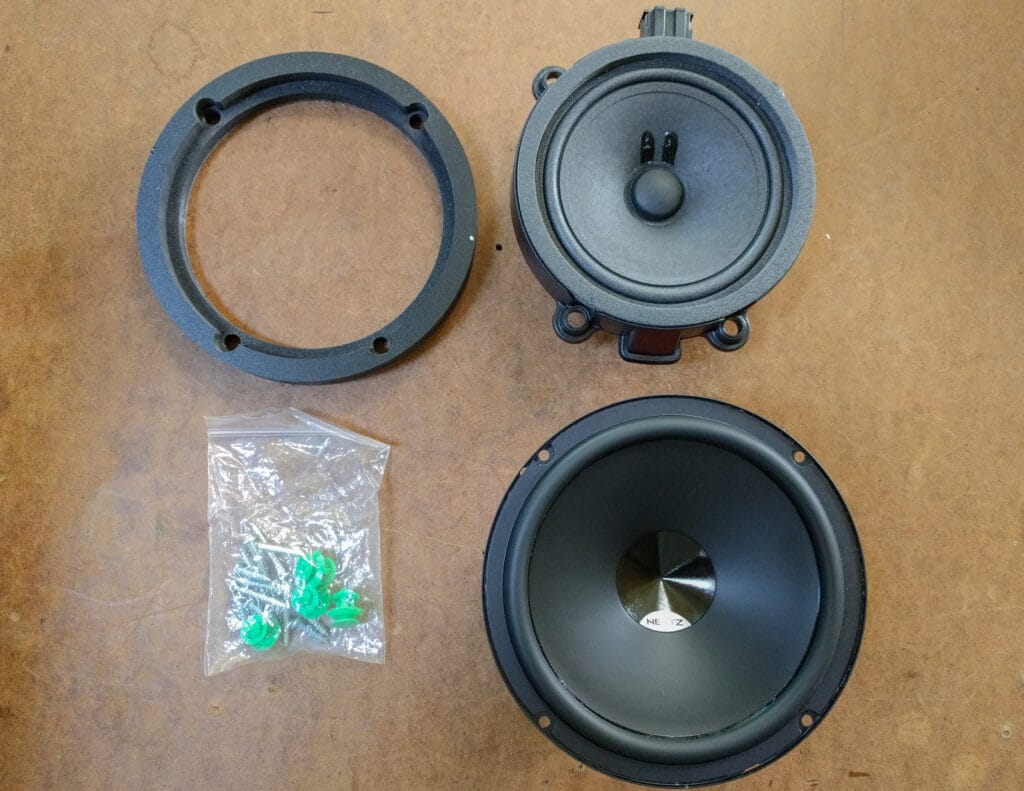

The original Mercedes speaker (top right), the replacement (bottom right), the trim ring (top left) and the spare green clips Hein sends with the ring!
The original Mercedes speaker (top right), the replacement (bottom right), the trim ring (top left) and the spare green clips Hein sends with the ring!
  • Sound deadener – we used Reckhorn because it’s what we had left over from the rest of the van.
  • Thinsulate – again, sold by Hein. Read more about it on our insulation comparison page.
  • Butt connectors for the wires you’ll replace.
  • Connectors for your speakers if they don’t come in the box (ours didn’t).
  • Electrical tape to insulate the speaker connections and stop them from shorting out against the metal of the door.

Disconnect van power

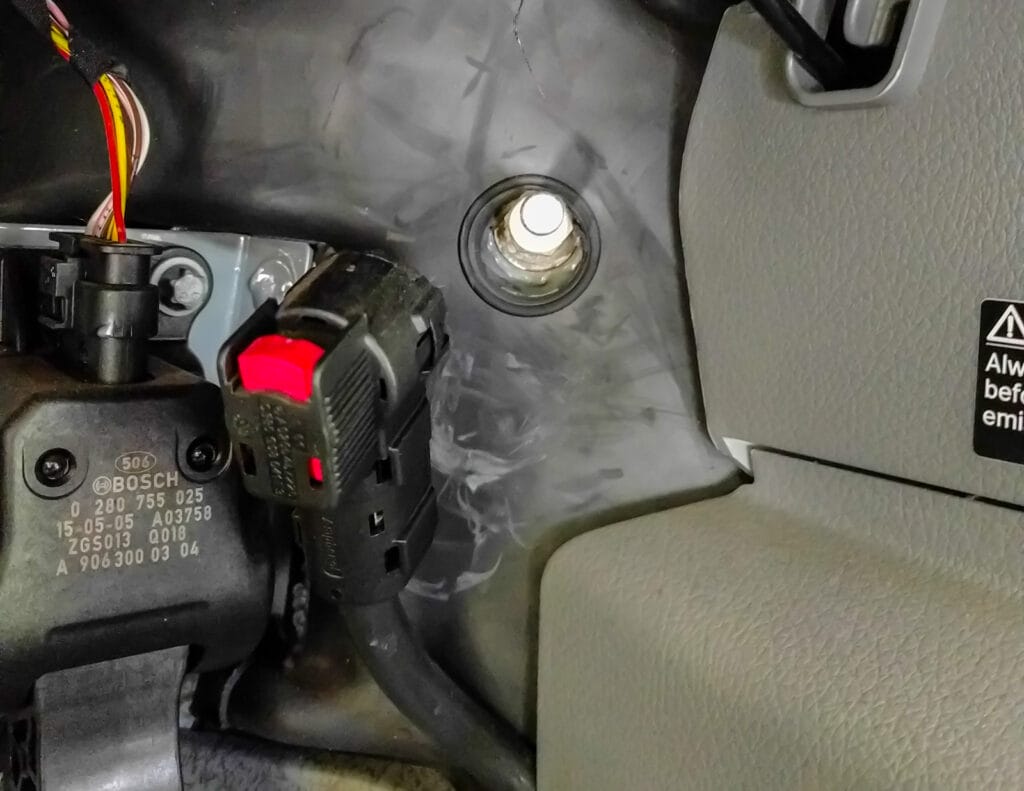

You'll be unplugging the window motor controls and cutting the speaker cables. Be safe rather than sorry - unclip the main power supply next to the accelerator pedal.
You’ll be unplugging the window motor controls and cutting the speaker cables. Be safe rather than sorry – unclip the main power supply next to the accelerator pedal.

Removing the door panel

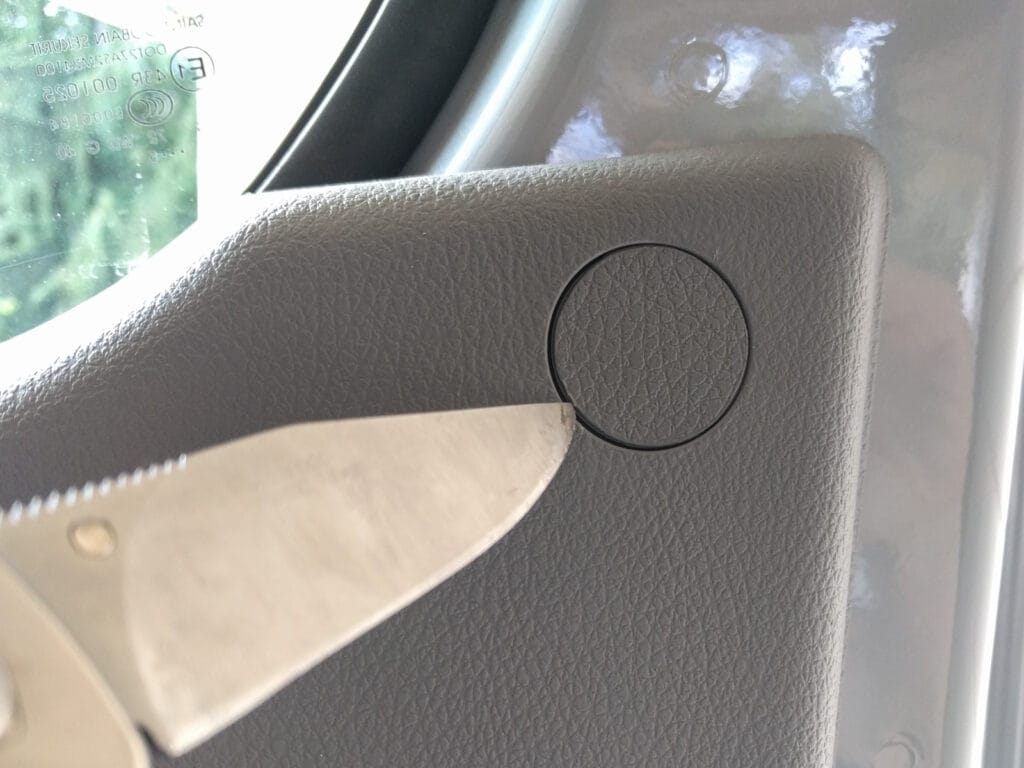

Door panel removal - top screw caps
Door panel removal – top screw caps need a thin tool to lever them out. Trim tools are too fat.

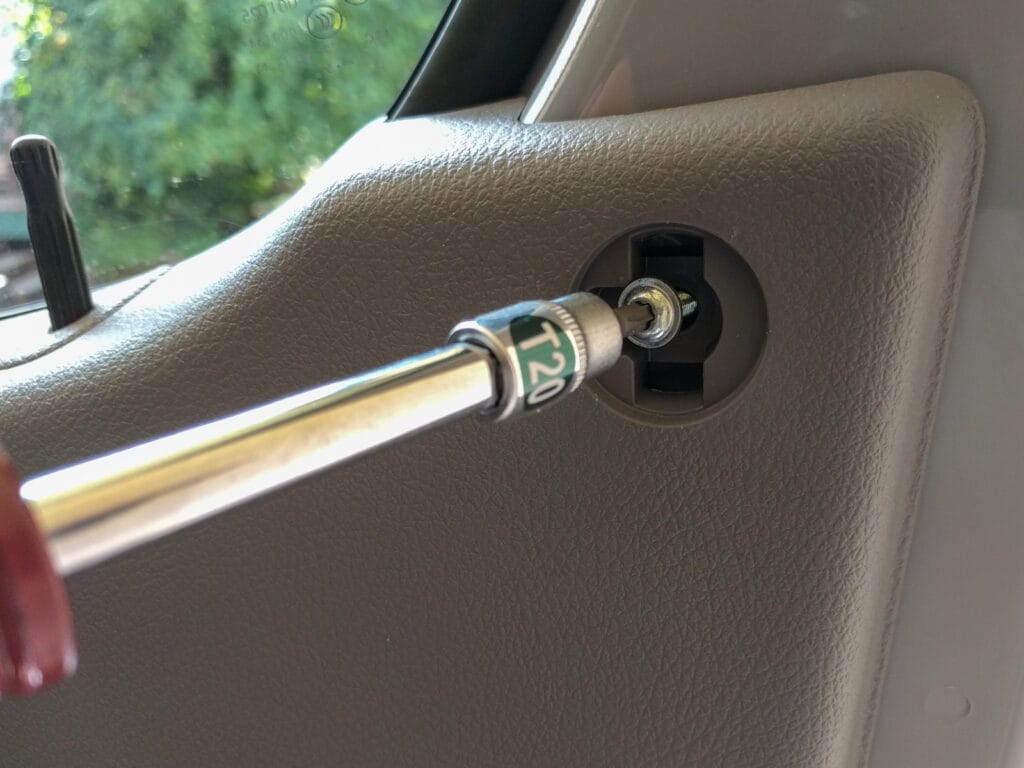

Door panel removal - top screws
Door panel removal – two T-20 top screws.

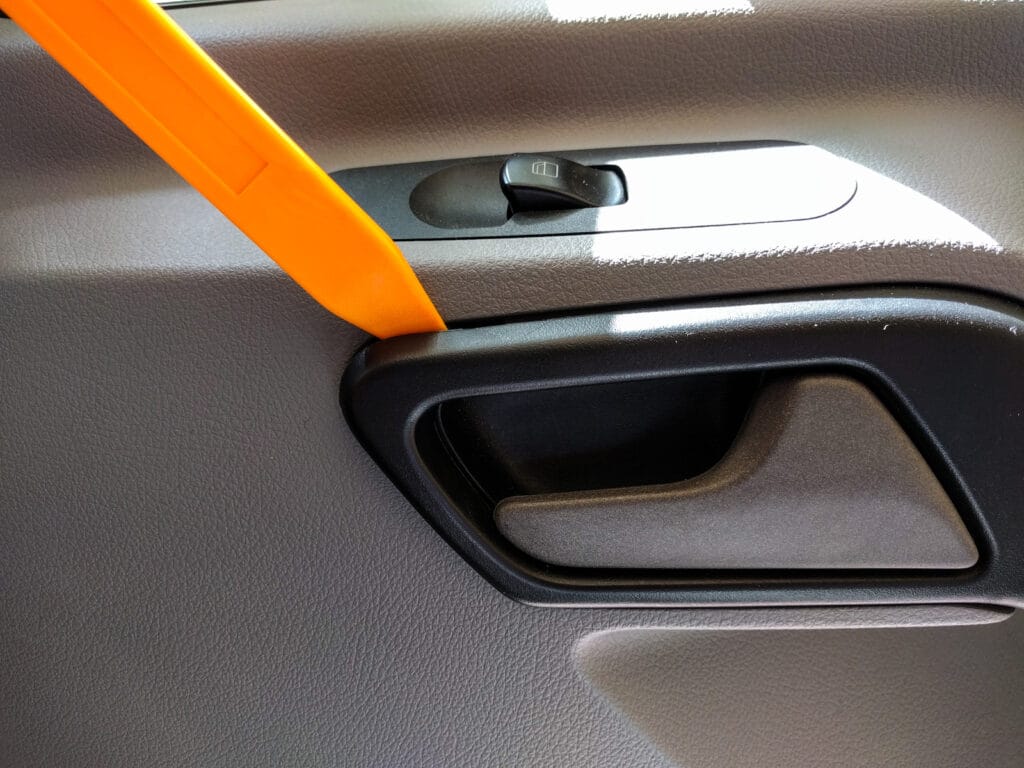

Door panel removal - handle surround
Door panel removal – handle surround can be pried off with trim removal tool.

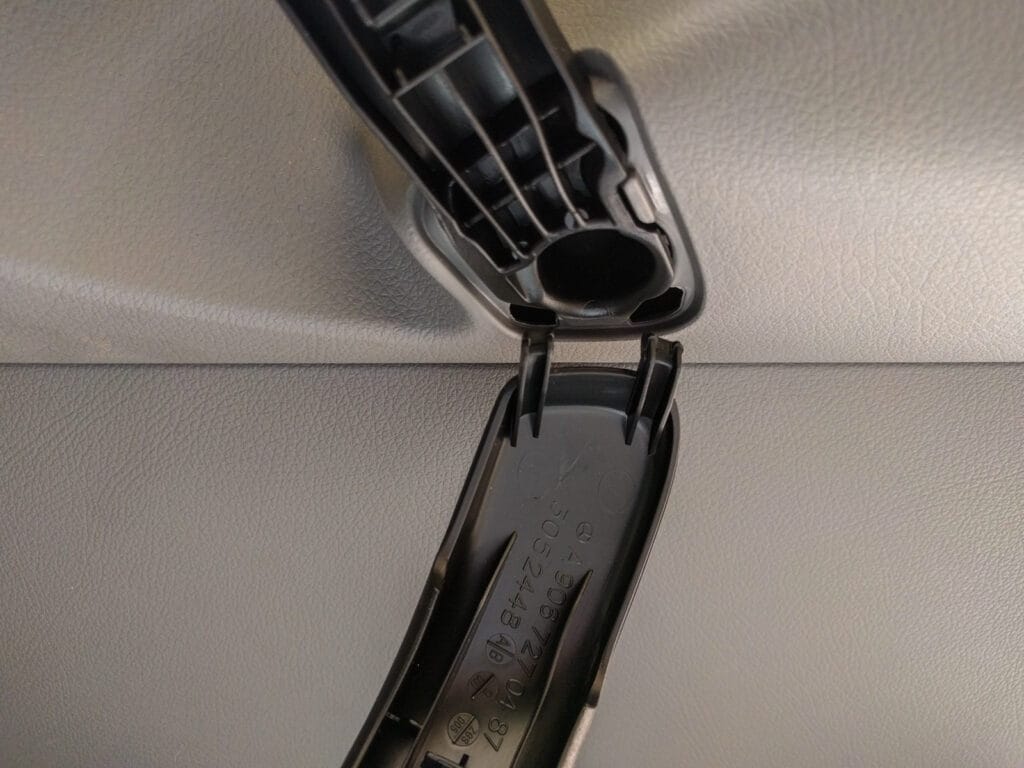

Door panel removal - handle surround unhooks at bottom end
Door panel removal – handle surround unhooks at bottom end.

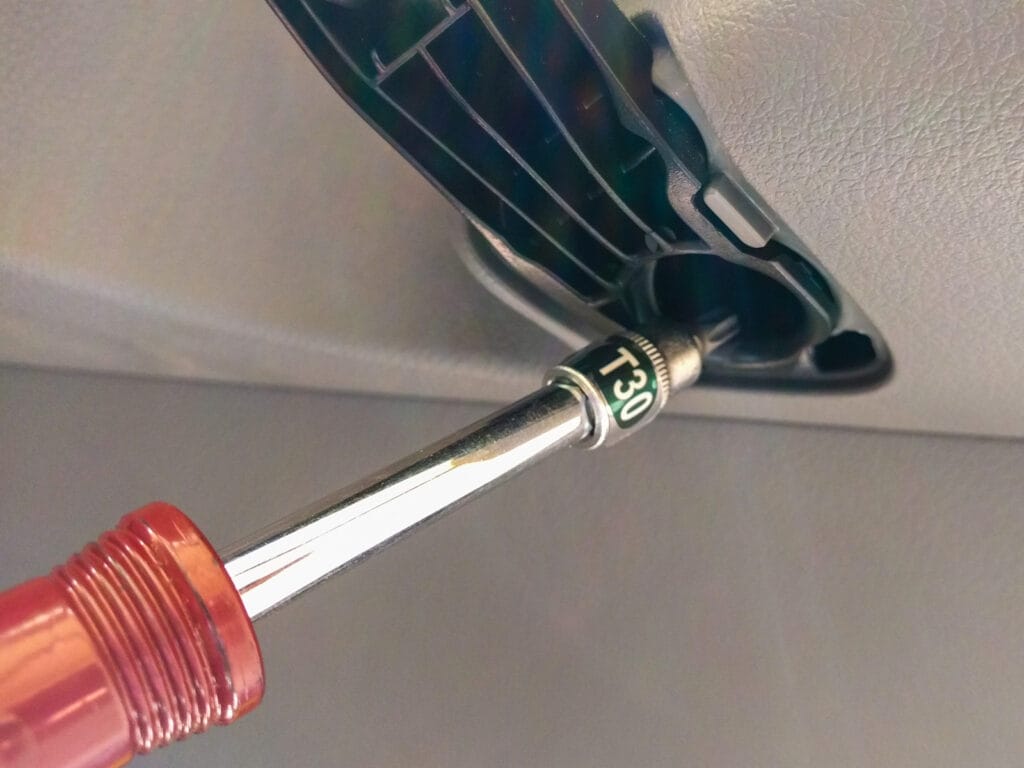

Door panel removal - two handle bolts
Door panel removal – two Torx T-30 handle bolts.

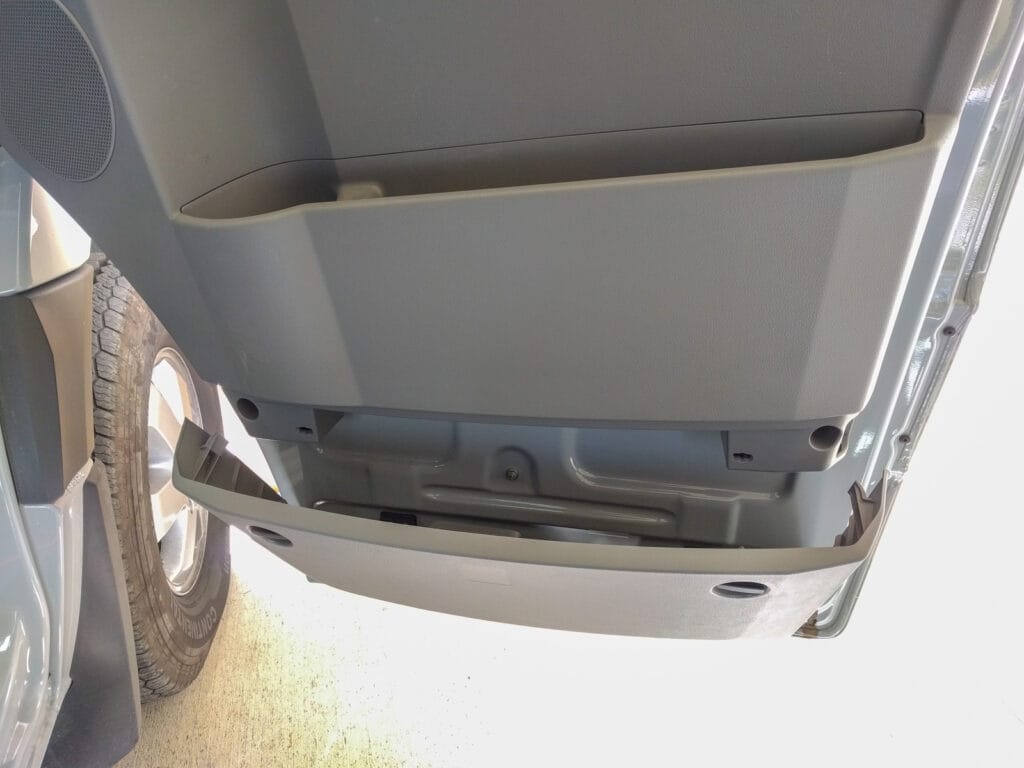

Door panel removal - two more T20 bolts behind the lower storage bin
Door panel removal – two more T-20 bolts behind the lower storage bin.

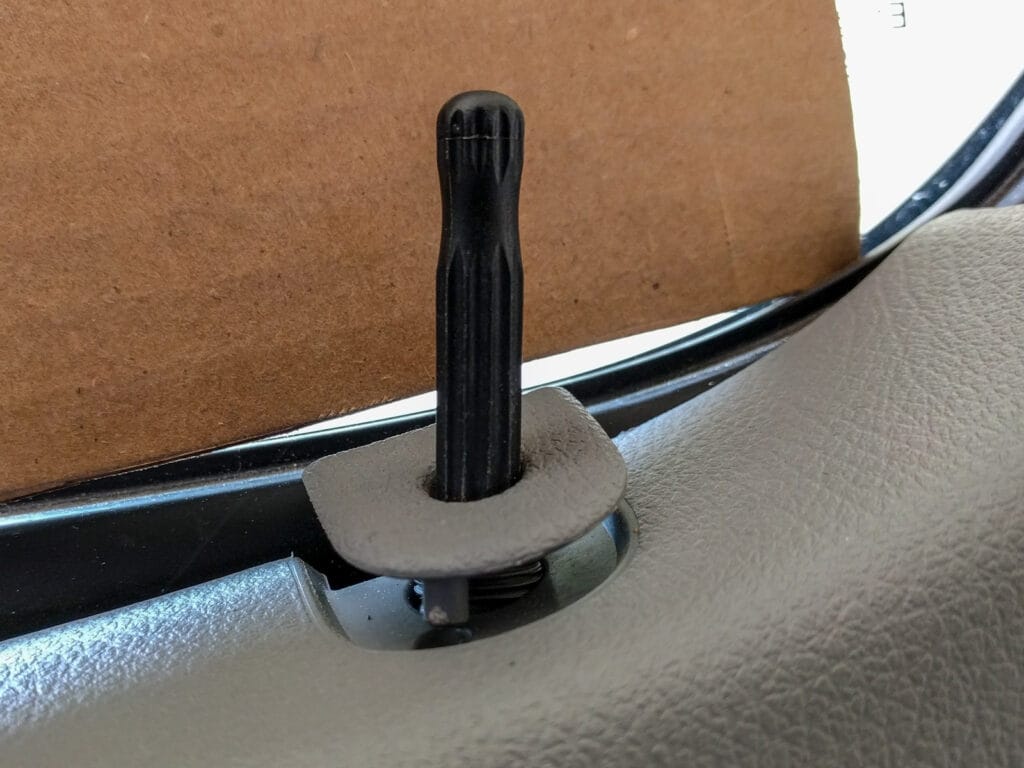

Door panel removal - pop the lock surround out
Door panel removal – pop the lock surround out using the trim tool.

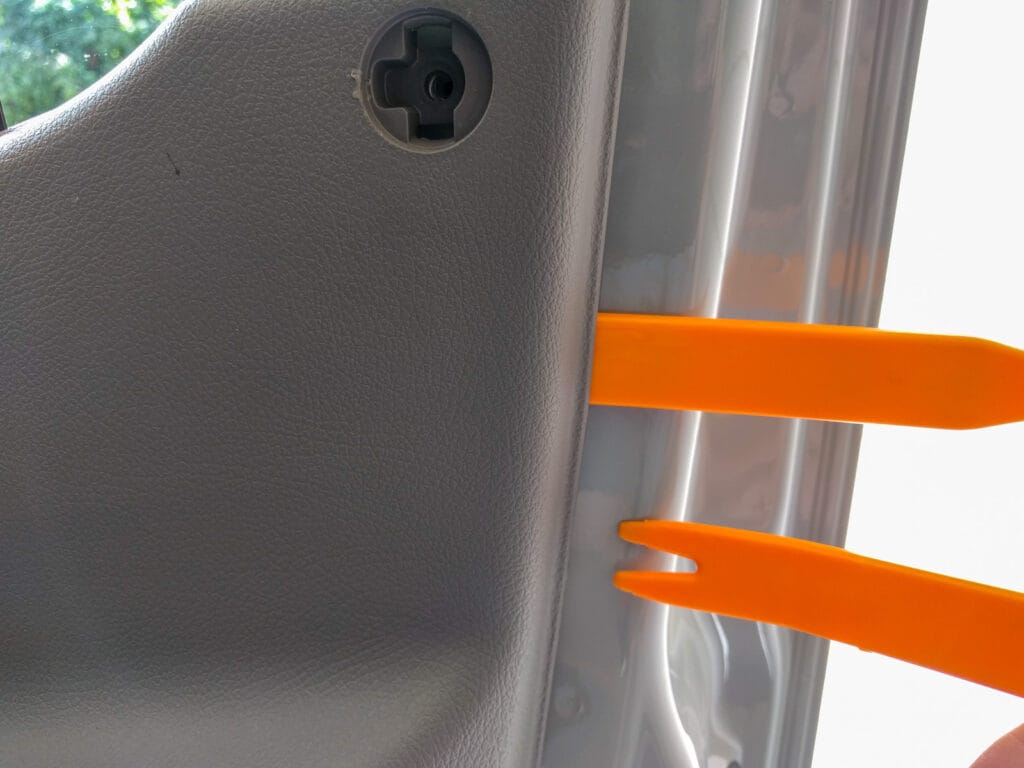

Door panel removal - lever the plastic panel away from the metal door
Door panel removal – lever the plastic panel away from the metal door. After you pop a couple of clips, it gets easier to pull the panel away.

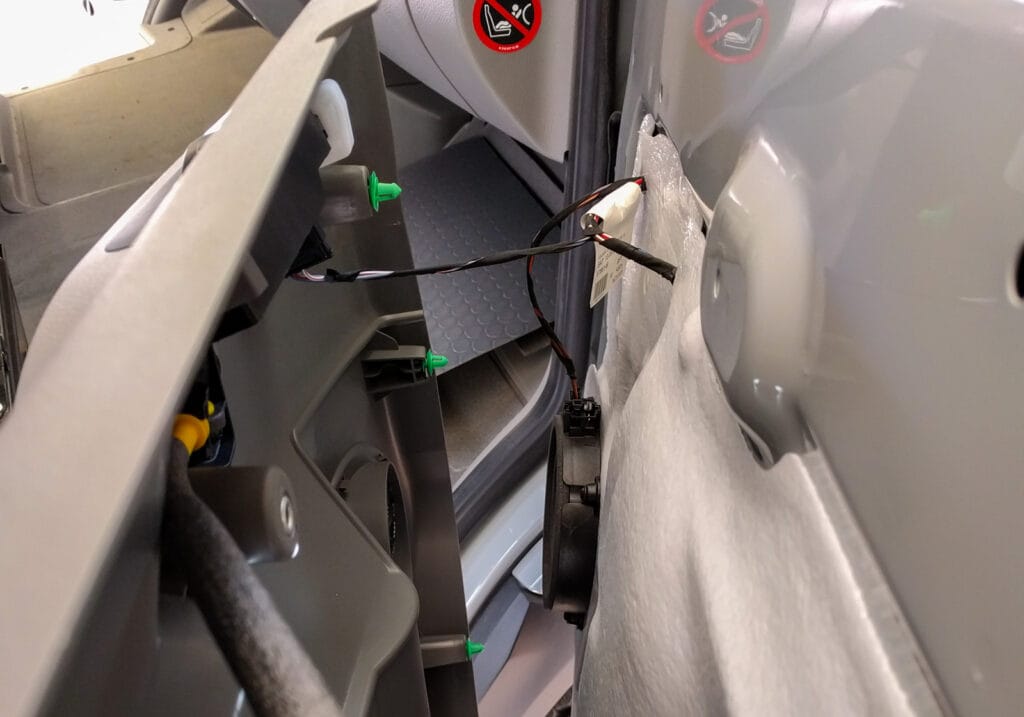

Door panel removal - use the trim tools to free each of the green clips around the edge of the panel
Door panel removal – use the trim tools to free each of the green clips around the edge of the panel. Unplug the wire from the window control in the plastic panel.

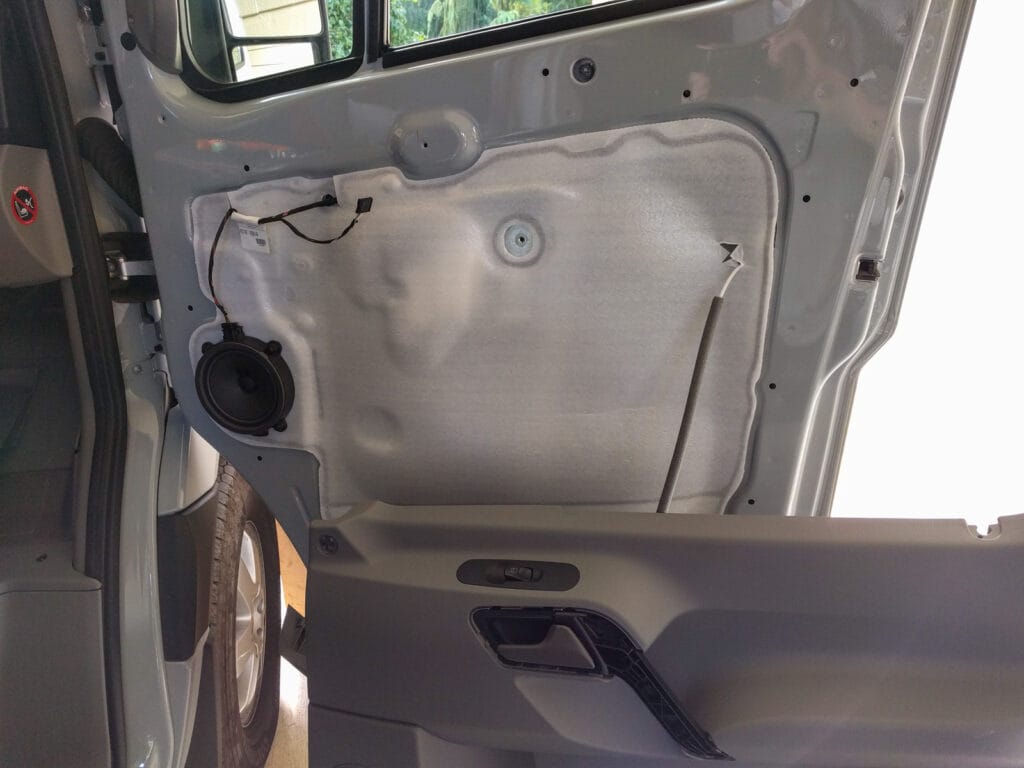

Door panel removal - at some point, it's easier to just pull the panel away rather than using the trim tool. The bottom of the panel hooks in to the metal, so lift, don't pull at the bottom
Door panel removal – at some point, it’s easier to just pull the panel away rather than using the trim tool. The bottom of the panel hooks in to the metal, so lift, don’t pull at the bottom.

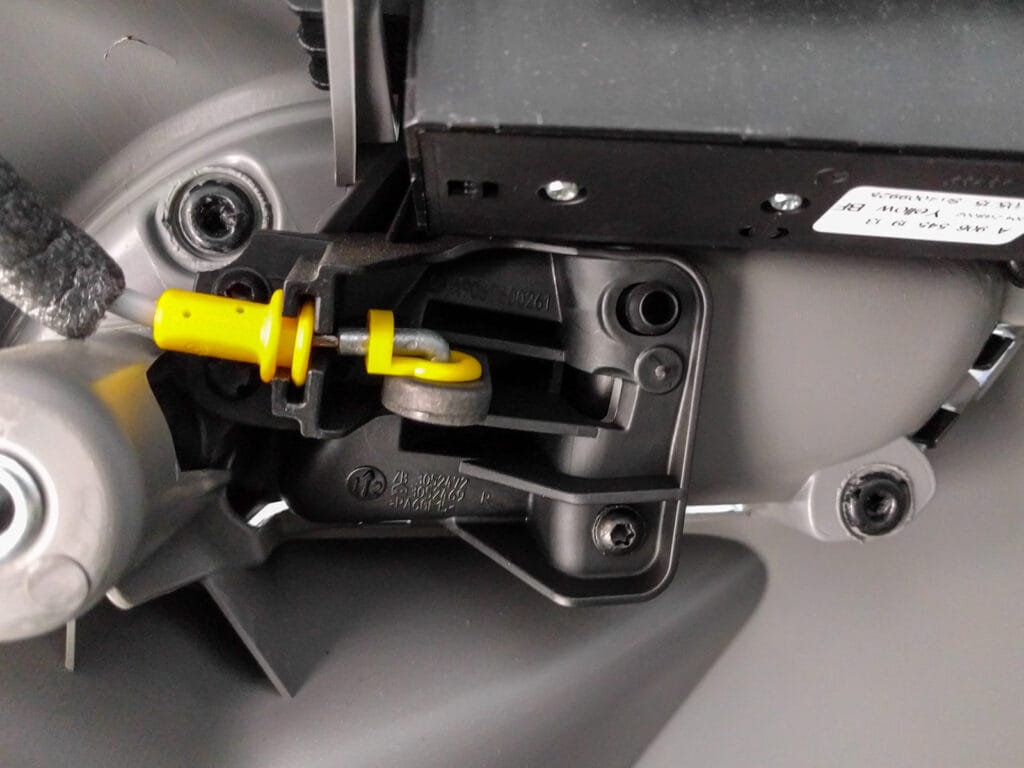

Door panel removal - unhook the door catch cable by first sliding the yellow cylindrical piece out of its holder, unclipping the smaller yellow piece from the wire (without removing it from the actuator arm), then lifting the l-shaped cable end out from the actuator
Door panel removal – unhook the door catch cable by first sliding the yellow cylindrical piece out of its holder, unclipping the smaller yellow piece from the wire (without removing it from the actuator arm), then lifting the l-shaped cable end out from the actuator.

Preparing the door

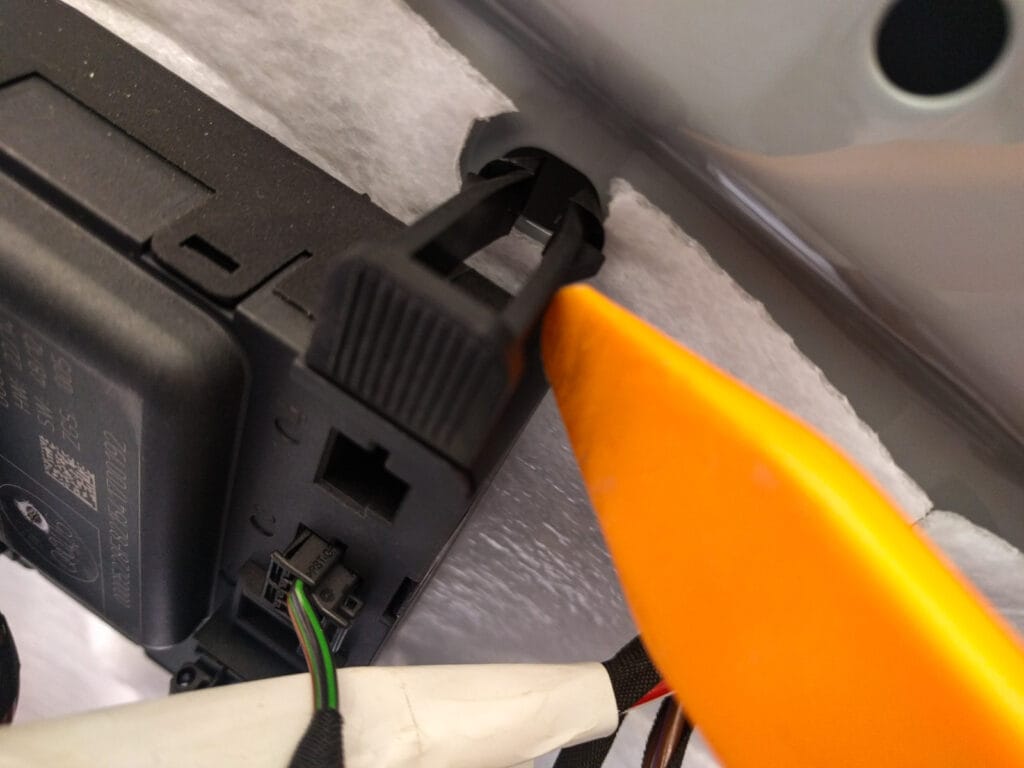

On the driver's door, you'll need to remove the control box for the electric windows. There are two clips on the front edge, then the unit slides forwards to release from the door.
On the driver’s door, you’ll need to remove the control box for the electric windows. There are two clips on the front edge, then the unit slides forwards to release from the door.

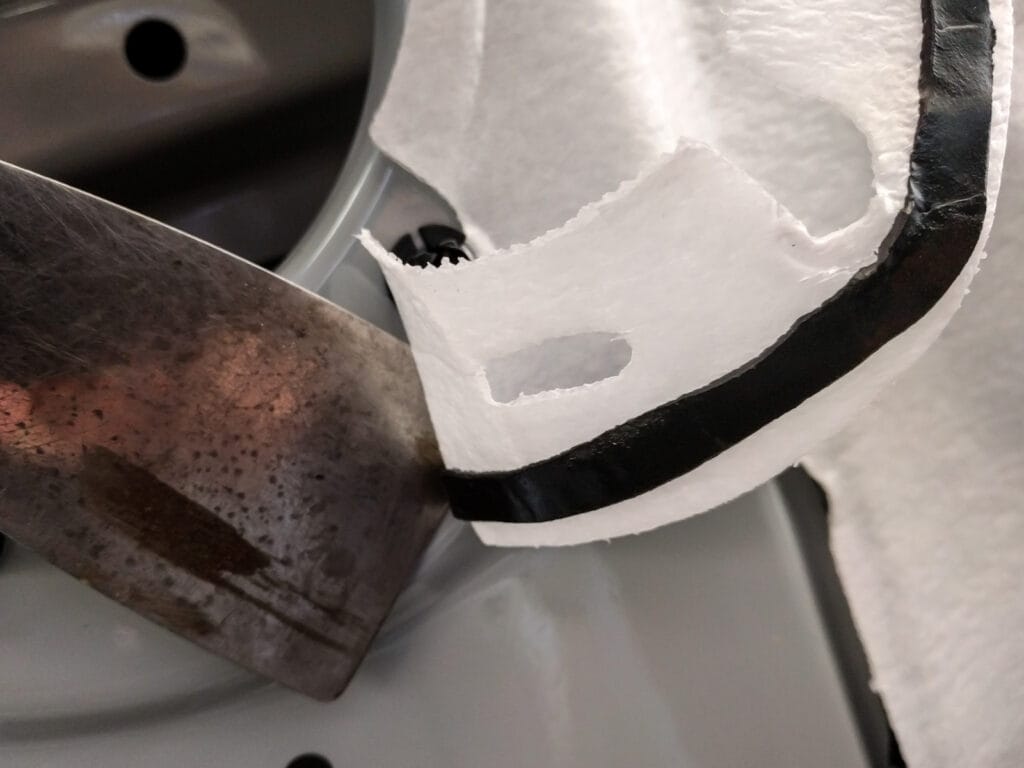

Pull the white material away from the door. Use a scraper to make sure the black sticky stuff stays in one piece so you can re-use it
Pull the white material away from the door. Use a scraper to make sure the black sticky stuff stays in one piece so you can re-use it.

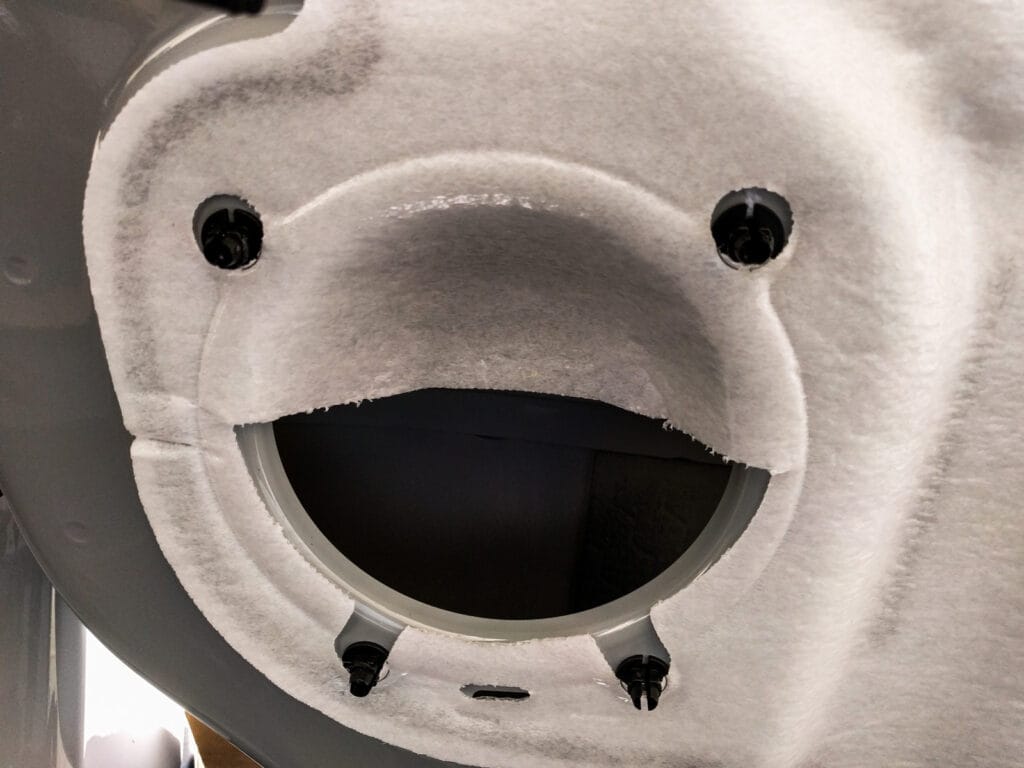

The speaker hole has the white material moulded in to it (to stop water hitting the speaker?) - you may have to remove this if your speakers are deeper than the stock ones.
Unscrew the four screws around the speaker and remove it. The speaker hole has the white material moulded in to it (to stop water hitting the speaker?). You may have to remove this if your speakers are deeper than the stock ones.

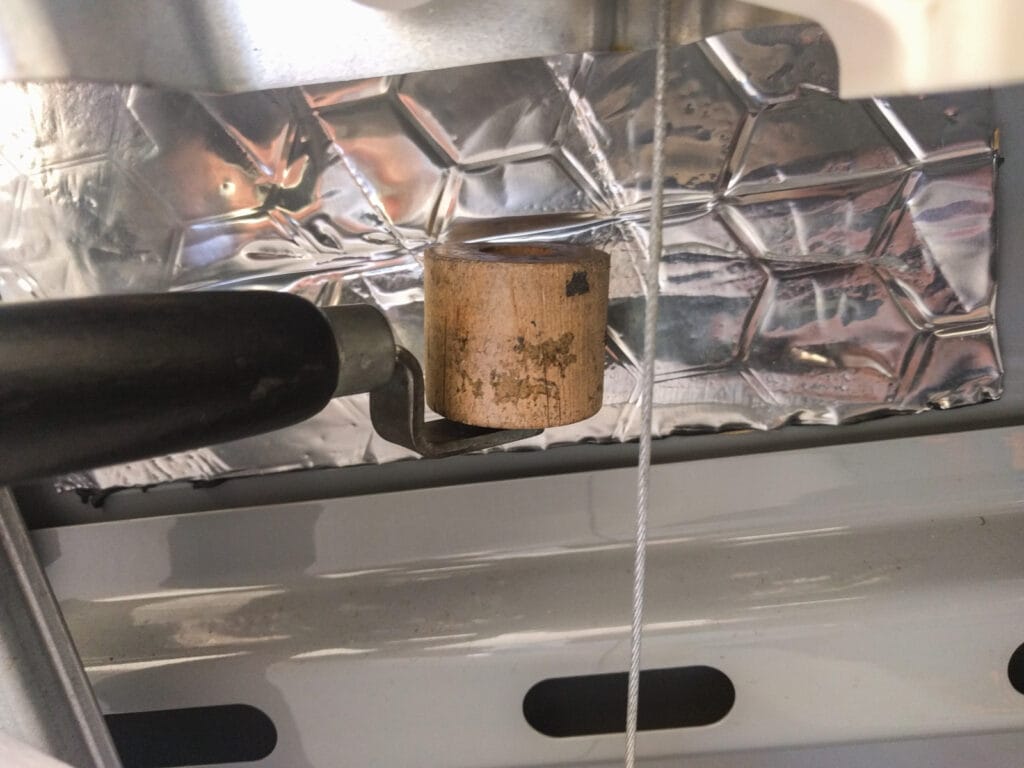

Add sound deadener and Thinsulate inside the door panel if you want to. Do NOT put Thinsulate in the area where the window retracts, just in the front part.
Add sound deadener and Thinsulate inside the door panel if you want to. Do NOT put Thinsulate in the area where the window retracts, just in the front part.

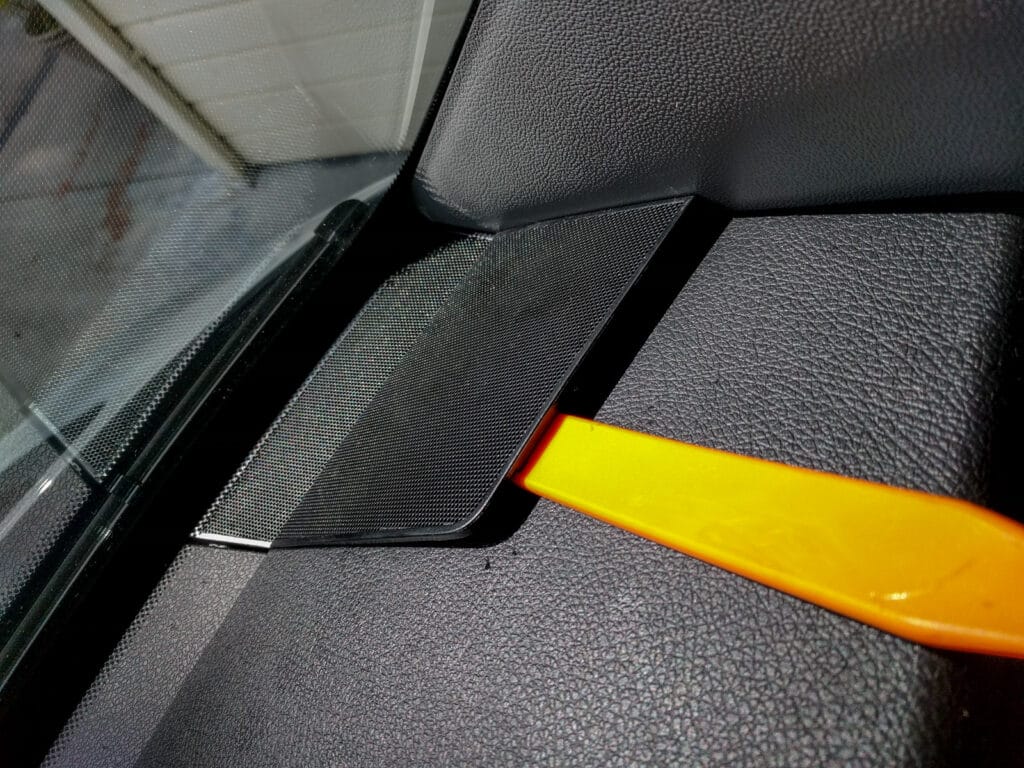

Remove the tweeter grille and then pull the A pillar cover off (start at the top, use the trim tool, and give it a tug)
Remove the tweeter grille and then pull the A pillar cover off (start at the top, use the trim tool, and give it a tug).

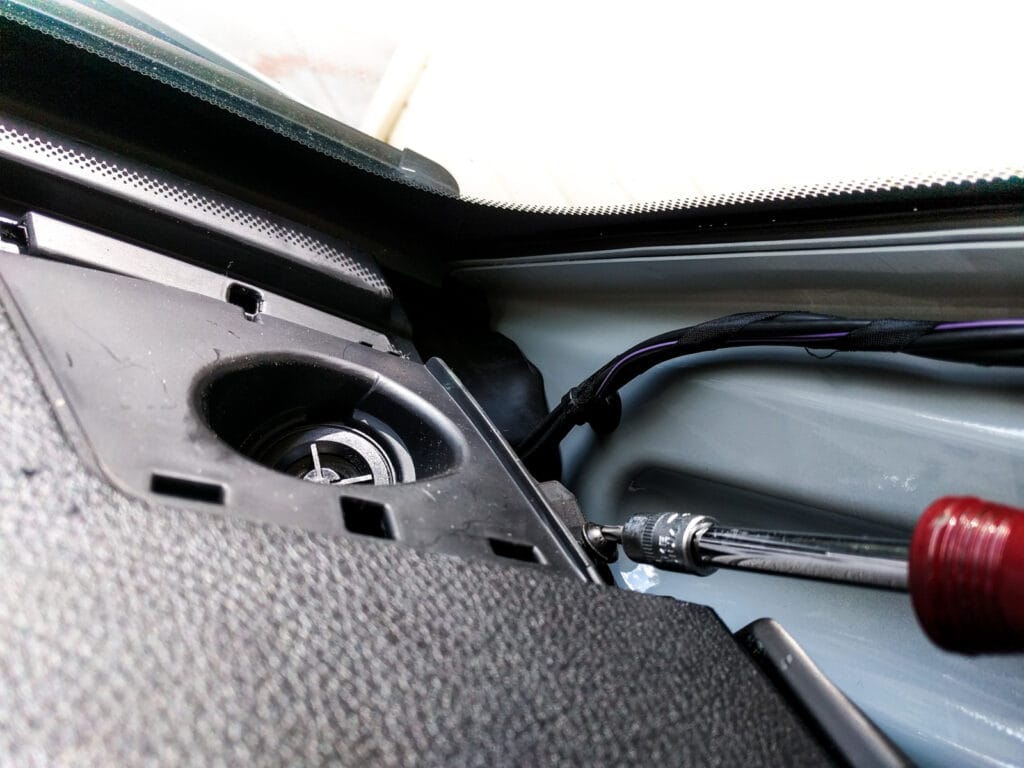

Undo the two T-25 screws holding the tweeter surround in place
Undo the two T-25 screws holding the tweeter surround in place. A T-20 driver works OK, given the angle you have to approach them at.

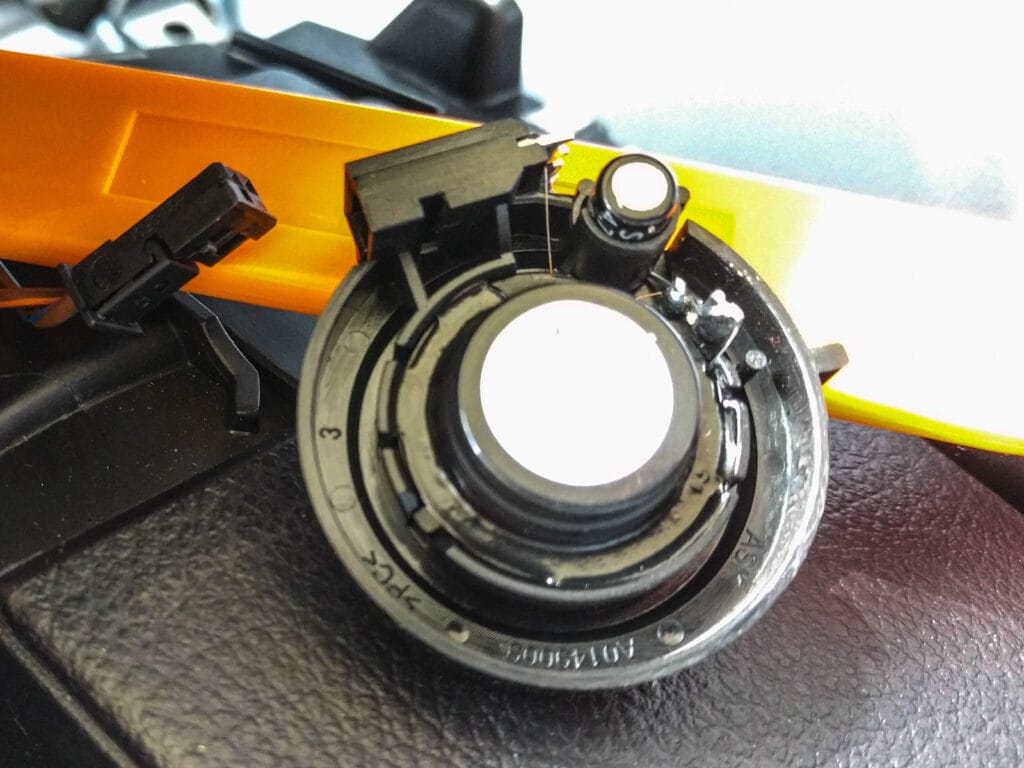

Pop out the tweeter from the base of the surround. It's only held in with a couple of plastic clips. Then unplug it and tape the wire somewhere to stop it from rattling.
Pop out the tweeter from the base of the surround. It’s only held in with a couple of plastic clips. Then unplug it and tape the wire somewhere to stop it from rattling. The stock system doesn’t have a crossover. Instead, it just uses that tiny capacitor (top of the tweeter) to filter out lower frequencies.

Add your new speakers

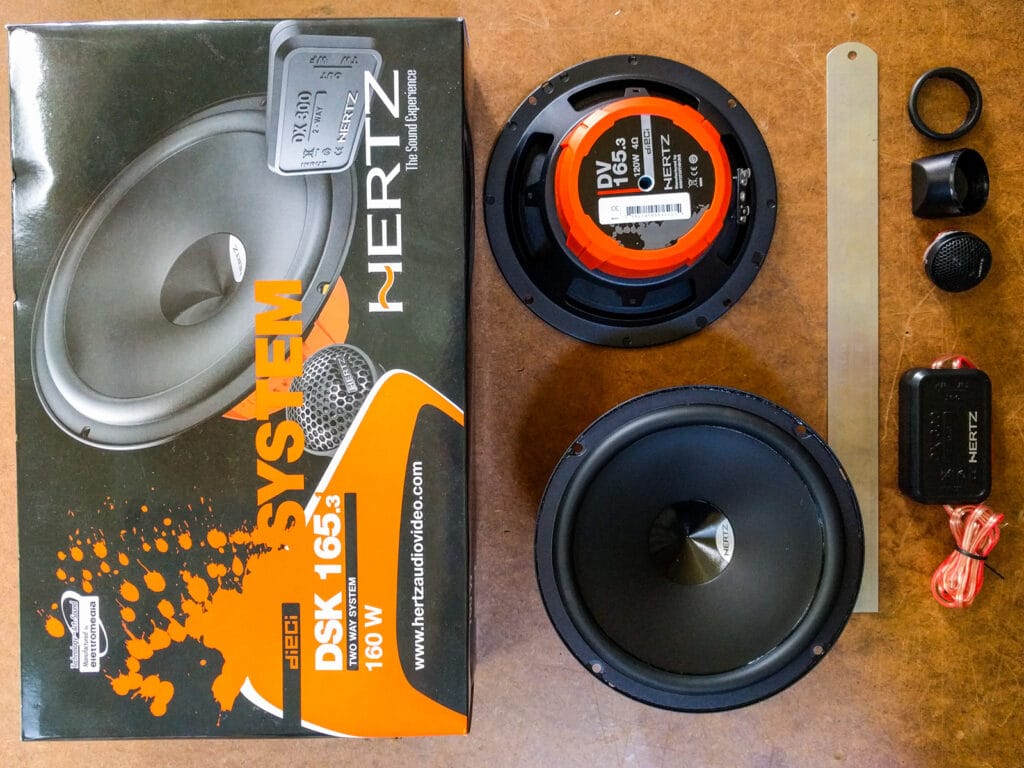

Prepare your new tweeter. You might need to put a trim ring around it to make it the correct diameter
Prepare your new tweeter. You might need to put a trim ring around it to make it the correct diameter

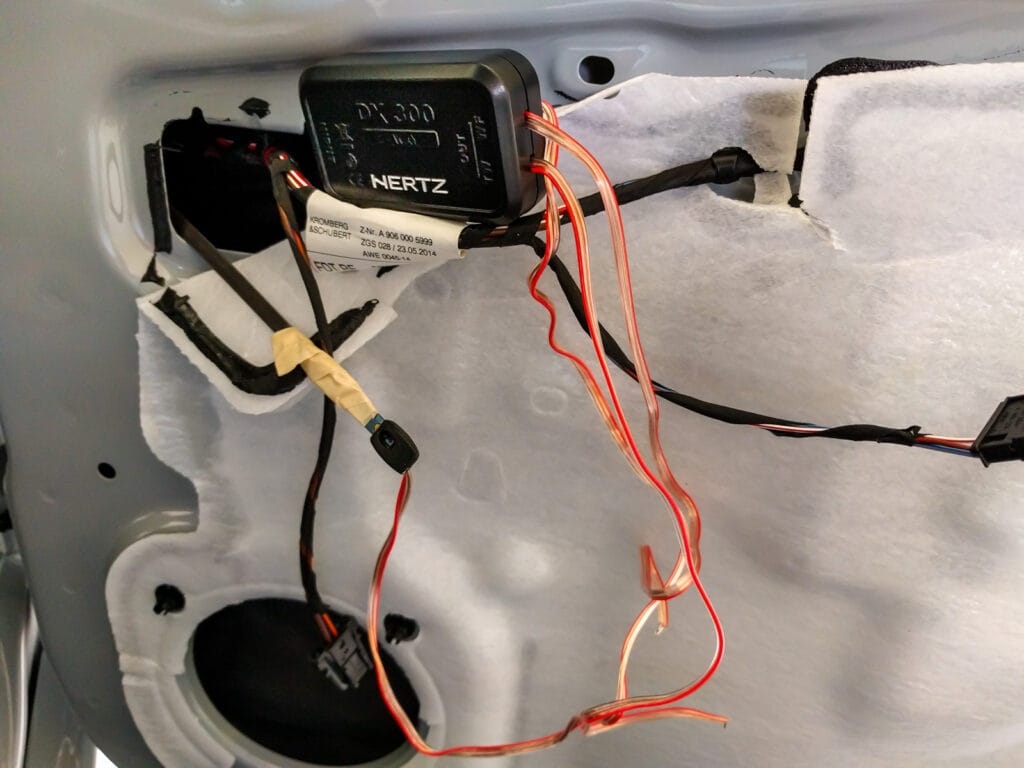

Place the crossover in the door space, then pull the tweeter wire through the wire channel to the dash using a wire fish
Place the crossover in the door space, then pull the tweeter wire through the flexible wire channel between the door and the van body and on through to the dash using a wire fish.

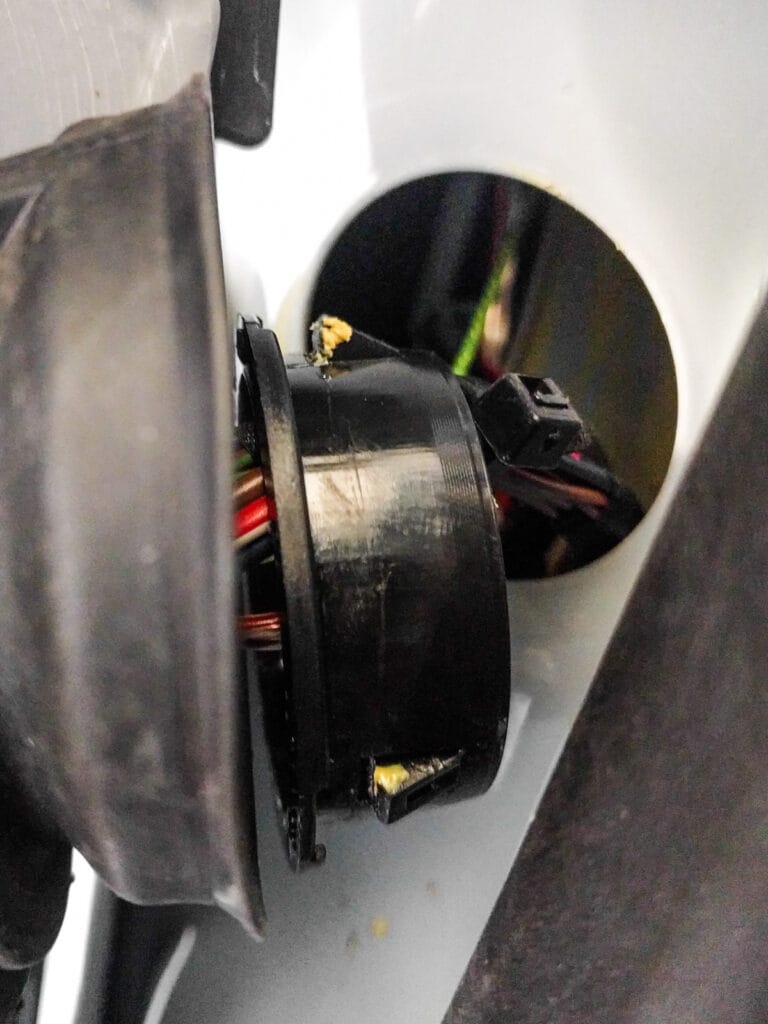

Make it easier to thread the wire through by pulling the rubber boot off from the A pillar. To re-install, first remove the plastic clip from the a-pillar metal (three tabs around its circumference), then re-attach the plastic clip to the rubber boot. Now clip the whole thing back into the hole in the A pillar.
Make it easier to thread the wire through by pulling the rubber boot off from the A pillar. To re-install, first remove the plastic clip from the a-pillar metal (three tabs around its circumference), then re-attach the plastic clip to the rubber boot. Now clip the whole thing back into the hole in the A pillar.

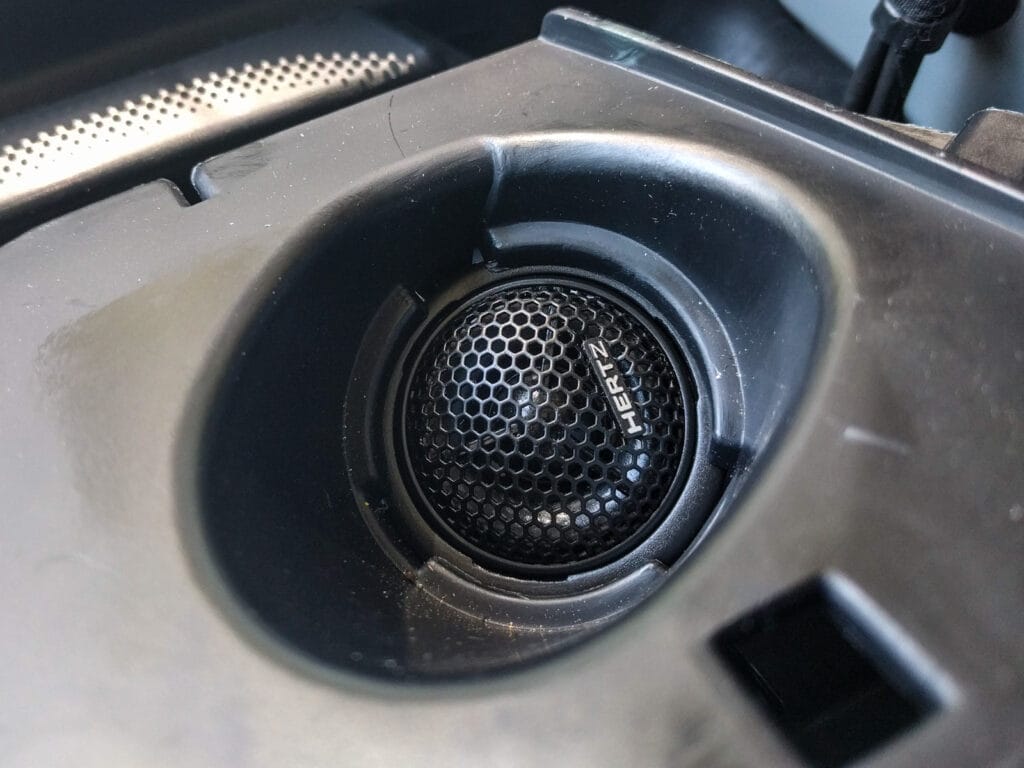

Pull the tweeter wire through to the underside of the tweeter surround, then crimp on butt connectors to join the tweeter wires to the ones coming from the crossover. Now you can push the tweeter into the underside of the surround. It should just clip in place.
Pull the tweeter wire through to the underside of the tweeter surround, then crimp on butt connectors to join the tweeter wires to the ones coming from the crossover. Now you can push the tweeter into the underside of the surround. It should just clip in place.

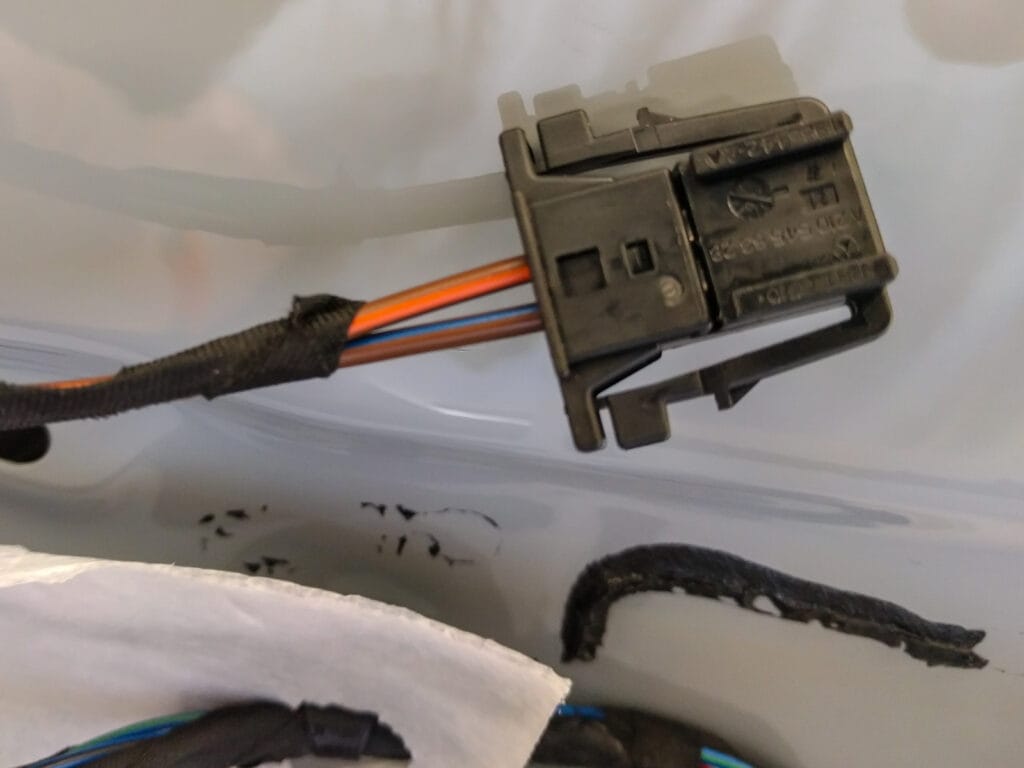

Cut the end off the original speaker wire in the door. Use butt crimps to connect this to the input on the crossover. Driver side: Brown/purple is +; Passenger side, brown/orange is +
Cut the end off the original speaker wire in the door. Use butt crimps to connect this to the input on the crossover. Driver side: Brown/purple is +; Passenger side, brown/orange is +

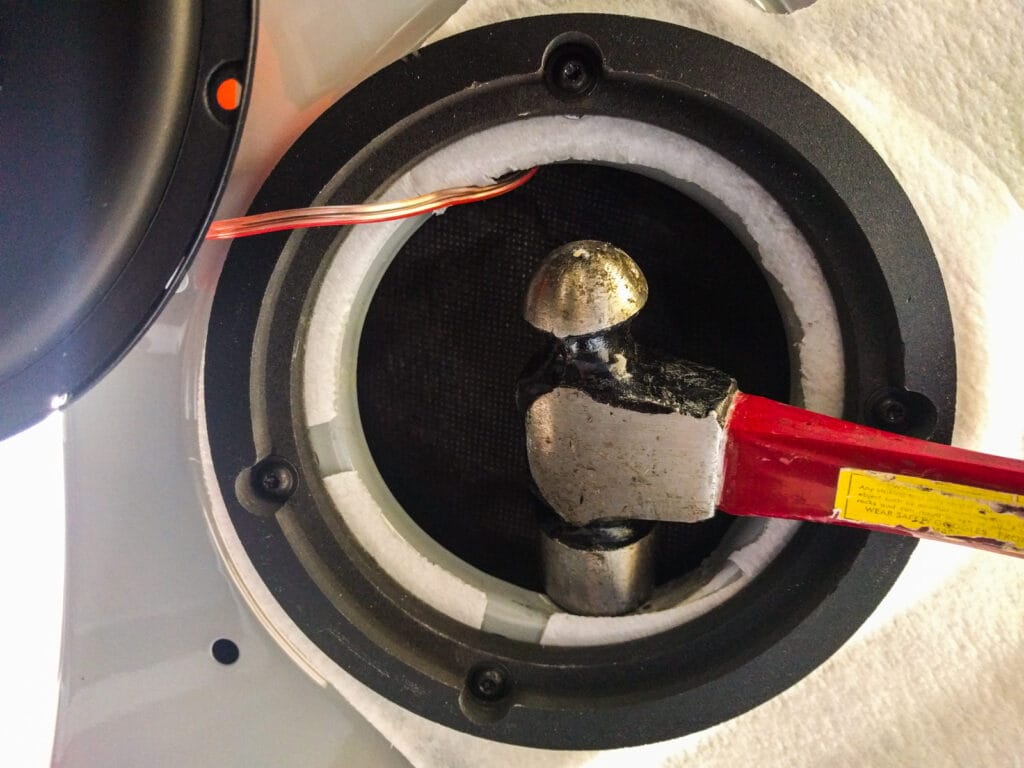

Attach the spacer ring to the speaker area. You might have to "relieve" the area where the cables attach. Note the high precision tool I'm using for that job. Spray the metal afterwards if you damaged the paint.
Pull the woofer wires down inside the door to the speaker hole and crimp on connectors for the speaker. Tape over the connectors with electrical tape to prevent them from shorting out on the metal of the door. Attach the spacer ring to the speaker area. You might have to “relieve” the area where the cables attach. Note the high precision tool I’m using for that job. Spray the metal afterwards if you damaged the paint.

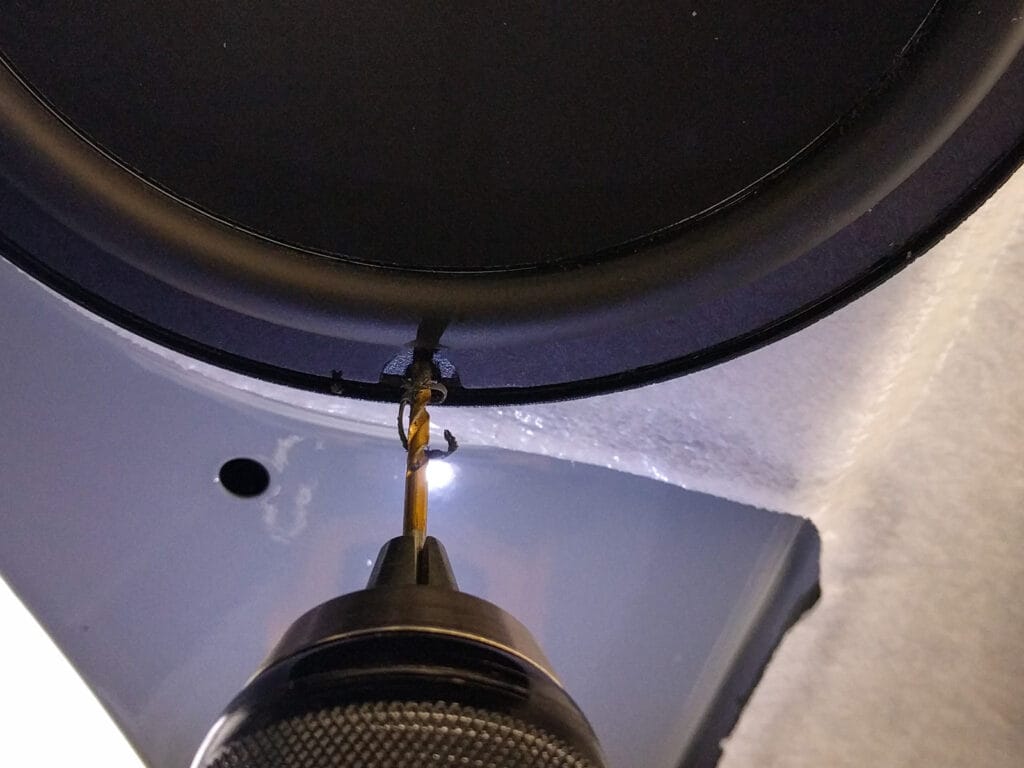

Mount the speaker in place, then carefully drill holes in the spacer and attach the speaker screws
Mount the speaker in place, then carefully drill holes in the spacer and attach the speaker screws. Now is a good time to secure the crossover to the panel with zip ties.

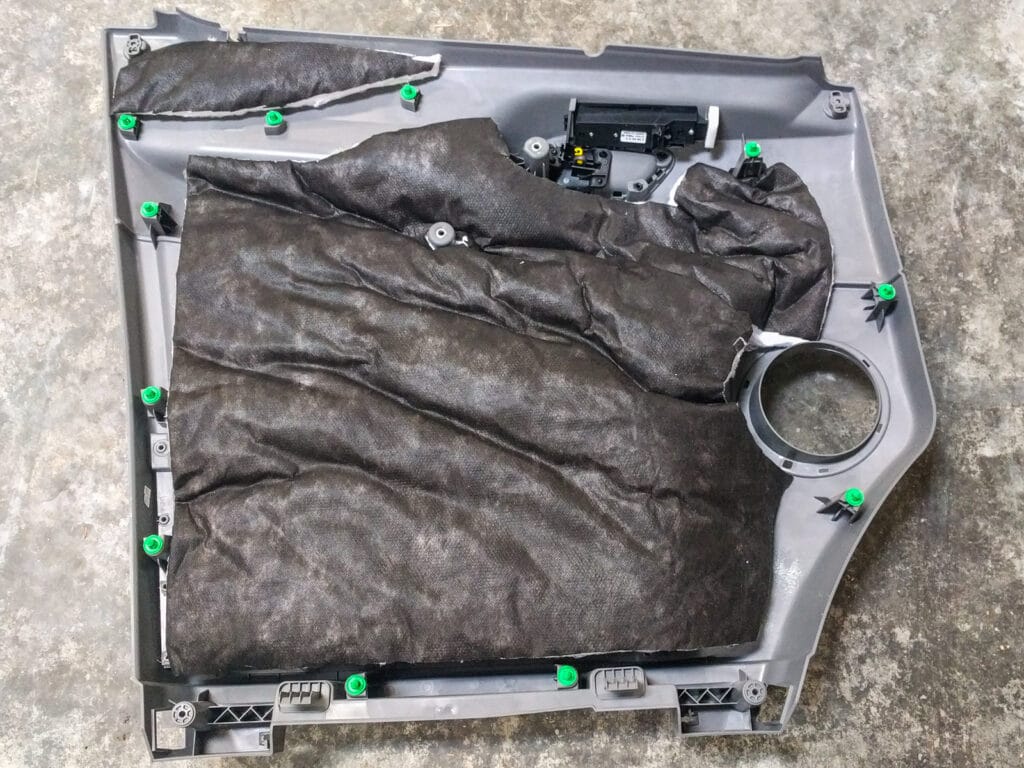

Add sound deadener and Thinsulate to the inside of the door panel, leaving the green clips and two screw locations in the handle area clear
Add sound deadener and Thinsulate to the inside of the door panel, leaving the green clips and two screw locations in the handle area clear

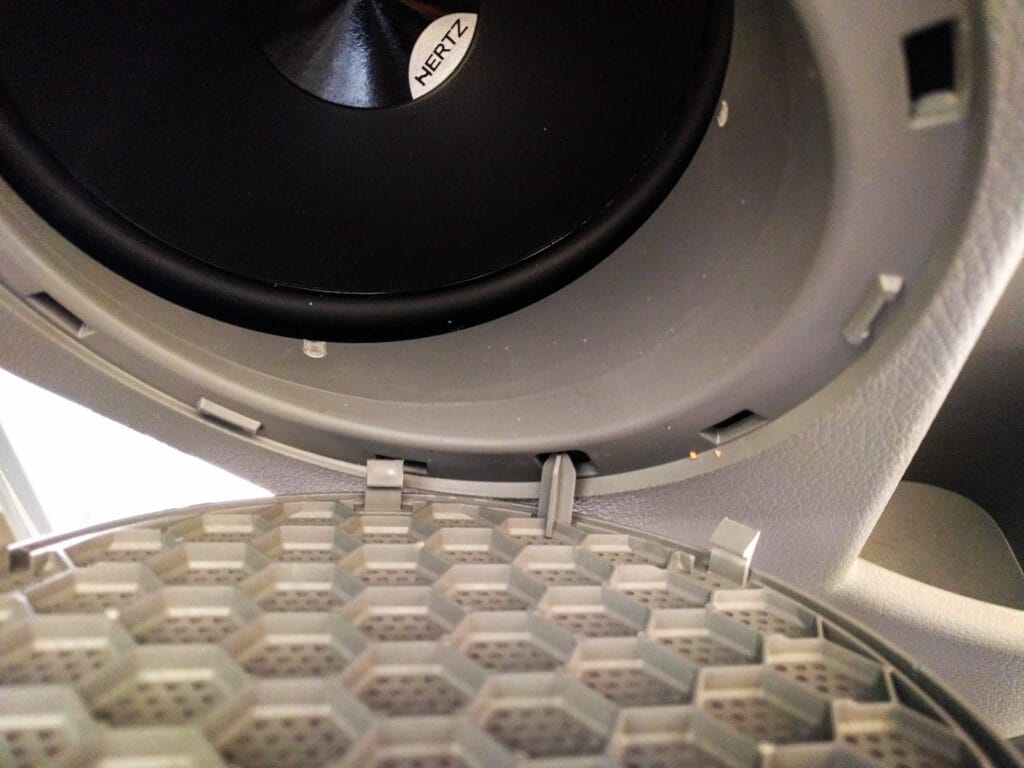

Check that the front of the speaker clears the plastic edge of the door panel.
Replace the panel. Before you attach it fully, check that the front of the speaker clears the plastic edge of the door panel. If not, you’ll have to remove some of the plastic. This is also a good time to test that the woofer and tweeter both work, before you close everything back up.

The rest of the job is just fit and finish work to replace the A pillar cover and tweeter dash grille. You can do those tasks while listening to your tunes in much clearer stereo.

Optional: Remove voice coil speaker

The one other thing you might want to do is lever up the grille in the center of the dash and disconnect the speaker there.

It’s a special “voice coil” speaker. It takes an input from both the left and the right channel.

It’s supposed to make phone conversations sound better. Now that you have your new speakers in place though, you probably don’t need it attached. Up to you!

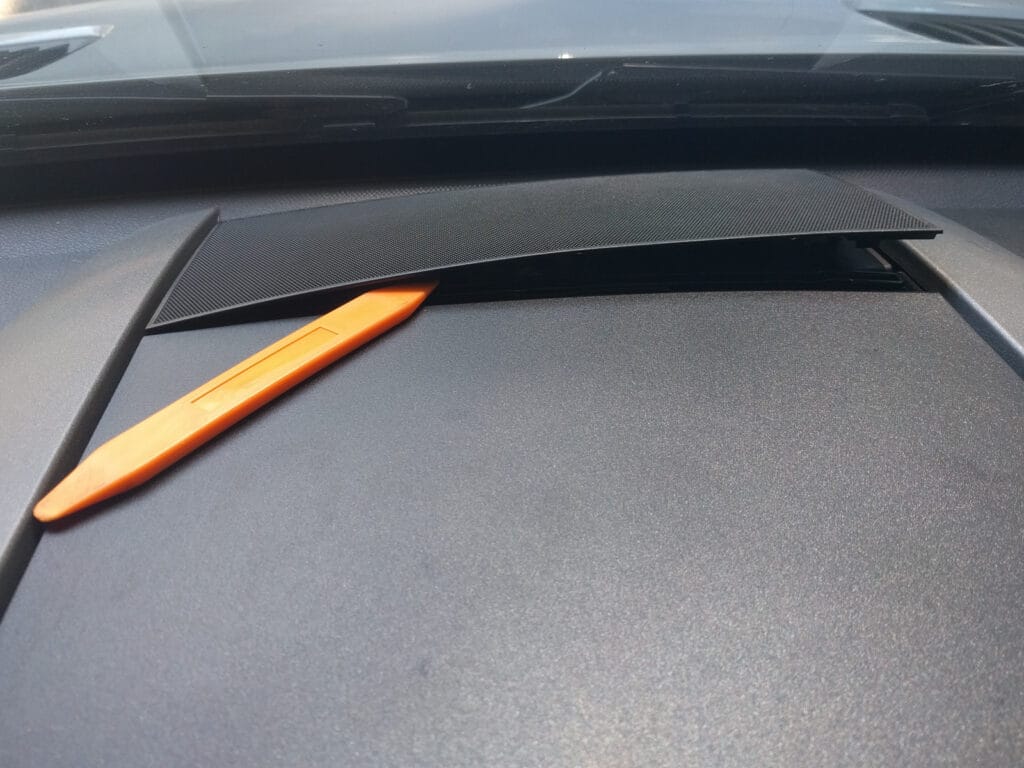

The central "voice coil" speaker sits under this grille in the middle of the dash. Pry it off.
The central “voice coil” speaker sits under this grille in the middle of the dash. Pry it off.

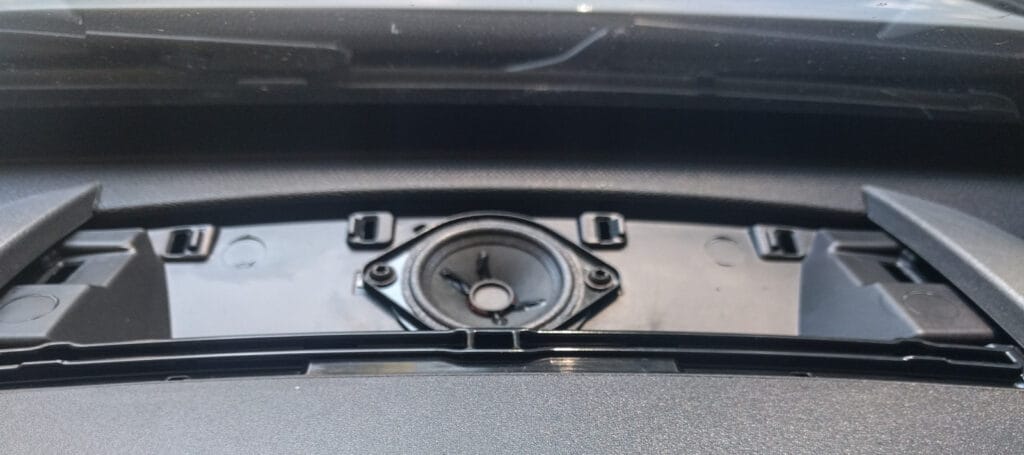

Here's the speaker - two T25 screws hold it in place.
Here’s the speaker – two T25 screws hold it in place.

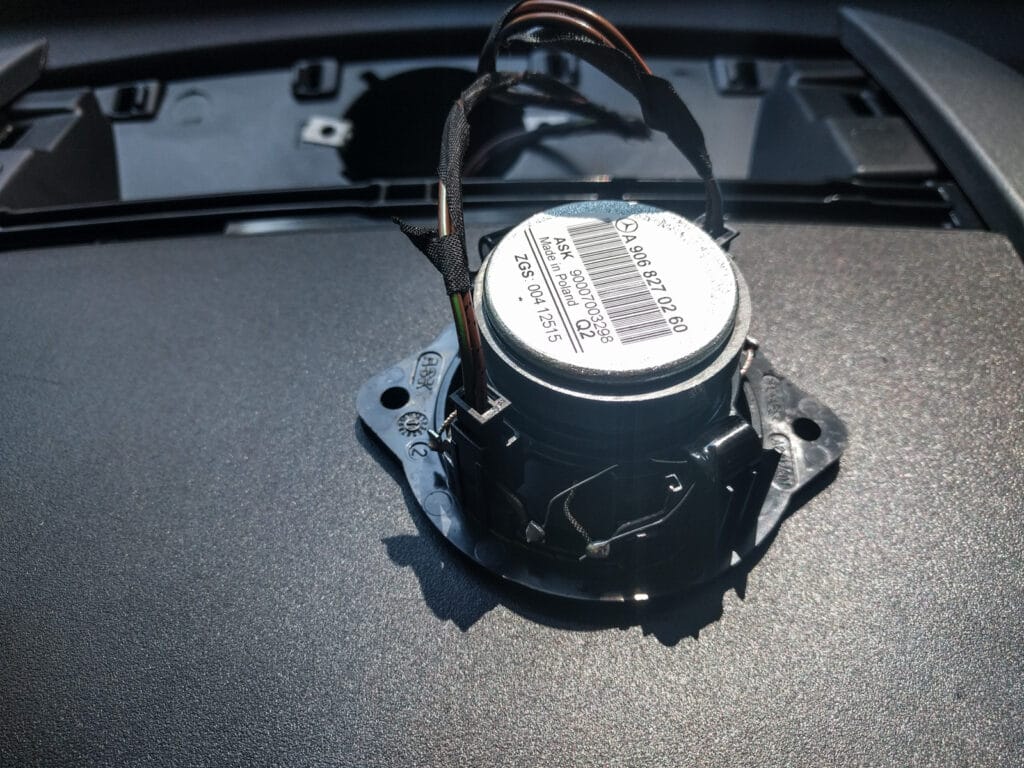

Once the screws are undone, just pull it out. Then you can unhook the two connectors. These might be useful later if you need to hook up a subwoofer.
Once the screws are undone, just pull it out. Then you can unhook the two connectors. These might be useful later if you need to hook up a subwoofer.

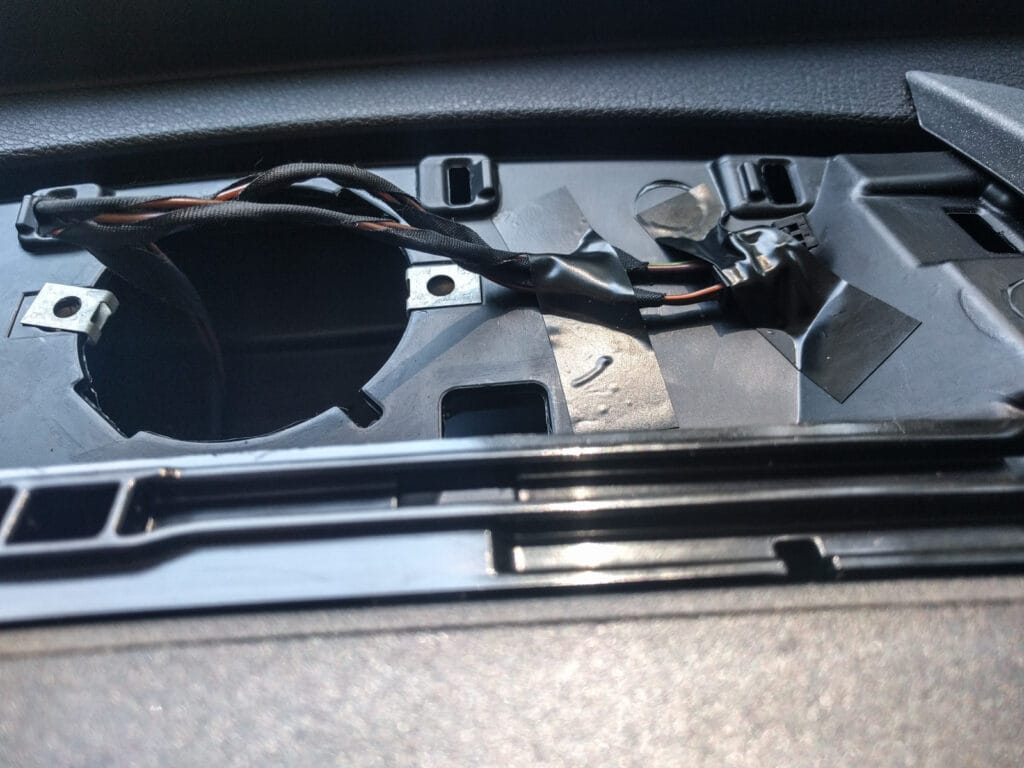

Tape the two wires to the dash so they don't rattle while you're driving. Then, replace the grille and you're done.
Tape the two wires to the dash so they don’t rattle while you’re driving.Tape the two wires to the dash so they don’t rattle while you’re driving. Then, replace the grille and you’re done.

Removing the voice coil actually improves the stereo effect. Phone calls over the stereo are still clear enough without it there. It’s such a simple job that you might as well do it while you have the tools out for the rest of the install.

Is the upgrade worth it?

Absolutely, yes. You’ll spend no more than half a day doing this upgrade. Even though there’s nothing visible at the end of it, the sound quality is much improved. The stock head unit is nothing special, but the speakers were holding it back.

Before we made the upgrade, we found we couldn’t even listen to the radio in the van above 50 MPH because the base engine and road noise interfered too much. And that’s with a lot of sound insulation in place already!

Now, we can listen to the radio at a lower volume and still make out everything that’s being said. Music sounds fuller. Vocals are back in the mix.

Obviously the stock head unit doesn’t offer much in the way of graphic equalization. Just bass and treble controls. We found the best position was actually completely neutral.

We might still add a subwoofer. The woofers in the door panels do a pretty good job with low frequencies, but the bass frequencies are lost to road noise. Even a small sub will probably bring those back.

Update: We added a sub and it helped. In the end though, we did replace the stock radio with an aftermarket head unit.
